Draughting arrangements for Bulleid Pacifics including the Giesl ejector

Discussion in 'Steam Traction' started by jamesd, Oct 14, 2014.

  1. martin1656

    martin1656 Resident of Nat Pres Friend

    Joined:
    Dec 8, 2014
    Messages:
    14,791
    Likes Received:
    9,116
    Gender:
    Male
    Location:
    St Leonards
    Heritage Railway Volunteer:
    No I do not currently volunteer
    And if i remember correctly, there were issues with drifting exhaust obscuring the crews vision when Tangmere was on the mainline, Might the rail vehicles acceptance body have a view on future operations of un rebuilt Bulleid Pacific's because of this problem, , so it might make sence to reduce this visibility problem down to an acceptable level?

  2. 30854

    30854 Resident of Nat Pres

    Joined:
    Mar 8, 2017
    Messages:
    6,989
    Likes Received:
    7,262
    Gender:
    Male
    Occupation:
    Retired
    Location:
    Brighton&Hove
    Heritage Railway Volunteer:
    No I do not currently volunteer
    With respect to @Big Al that ain't exactly the original appearance, as it features the full 'Southern' roundel, rather than the 'inverted horseshoe' initially fitted to 21C1 and hastily amended due to superstition on the part of enginemen.

  3. Jamessquared

    Jamessquared Nat Pres stalwart

    Joined:
    Mar 8, 2008
    Messages:
    21,389
    Likes Received:
    40,322
    Location:
    215
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    Not to mention the cast brass number plates and "Southern" lettering, soon discarded on weight grounds. (How they got all that brass past the wartime austerity measures is an interesting question!)

    To be honest, the first five locos were pretty radical in appearance; things settled down after that into more or less the final form, but the first few were all somewhat different from each other.

    This would look pretty dramatic if you could just "discover" in the archives that it was actually 35001 and not 35011 that had wound up at Barry all those years ago ...

    https://transportsofdelight.smugmug...SOUTHERN-RAILWAY/SOUTHERN-RAILWAY/i-LDCWPLd/A

    Tom

    Spamcan81 and 30854 like this.
  4. Big Al

    Big Al Nat Pres stalwart Staff Member Moderator

    Joined:
    May 30, 2009
    Messages:
    17,450
    Likes Received:
    16,319
    Location:
    1016
    Heritage Railway Volunteer:
    No I do not currently volunteer
    As you say, there was tweaking from Day 1 to the early locos of which the change to a full roundel was one, for obvious reasons. (Nice to see that feedback led to a quick response.) I used that image of Royal Mail at Salisbury as it illustrates what I believe became the accepted version of the original design that is quite distinctive from how the locos appeared later and would set GSN as different from those light pacifics that still exist.

    30854 likes this.
  5. Sheff

    Sheff Well-Known Member

    Joined:
    Apr 21, 2006
    Messages:
    7,247
    Likes Received:
    1,884
    Gender:
    Male
    Occupation:
    Retired Engineer & Heritage Volunteer
    Location:
    N Warks
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    All of this presumes the loco is going mainline. Is that not the case? If it’s just going to be a show pony for heritage lines then I’m out.

  6. class8mikado

    class8mikado Well-Known Member

    Joined:
    Jun 1, 2009
    Messages:
    3,125
    Likes Received:
    1,118
    Occupation:
    Print Estimator/ Repository of Useless Informatio.
    Location:
    Bingley W.Yorks.
    Heritage Railway Volunteer:
    No I do not currently volunteer
    Don't think anyone is suggesting 'real 'wind tunnel testing.

    Last edited: Apr 11, 2021
  7. JJG Koopmans

    JJG Koopmans Member

    Joined:
    Nov 12, 2014
    Messages:
    363
    Likes Received:
    426
    Gender:
    Male
    Heritage Railway Volunteer:
    No I do not currently volunteer
    The book of Roger Mannion, "The Southern Pacifics" gives some details on page 85 on the testing of a 1/10 scale model in the wind tunnel of the University of Southampton early 1943.
    This book also has drawings of the original smokebox version and the Ell modified one on page 54 and 160 resp.
    Kind regards
    Jos

    srapley likes this.
  8. Allegheny

    Allegheny Member

    Joined:
    May 8, 2015
    Messages:
    509
    Likes Received:
    243
    Gender:
    Male
    Heritage Railway Volunteer:
    No I do not currently volunteer
    Was the blastpipe size changed at all?

  9. JJG Koopmans

    JJG Koopmans Member

    Joined:
    Nov 12, 2014
    Messages:
    363
    Likes Received:
    426
    Gender:
    Male
    Heritage Railway Volunteer:
    No I do not currently volunteer
    No, 5 orifices of 2 5/8 in. diam.
    Kind regards
    Jos

    Allegheny likes this.
  10. Spinner

    Spinner Member

    Joined:
    Jul 29, 2006
    Messages:
    204
    Likes Received:
    201
    Occupation:
    Public Servant
    Location:
    Australia
    That original (or as introduced) casing is as ugly as a hat full of, well, blurters. The second version is far more visually acceptable. I thought that making 35011 aesthetically pleasing was part of the remit. You do not want to produce a locomotive so ugly that it scares passengers away. Similarly, that shape kept the exhaust over the locomotive, reducing visibility, which was the operational reason for the, as someone else has called it, 'production version.'

    Part of the attraction in traveling behind a 'cased in' 35011 will be based on doing something that people did in the 1940s and 1950s. The 'production version' of the casing is depicted in many photographs etc, making brand recognition work in filing the carriages that 35011 will be hauling.

    srapley likes this.
  11. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    My understanding, backed up by some of the CFD we've done of a MN and looking at the papers from the 40s on the aerodynamics of the front end of an A4 and a Duchess, the front end works well when there is no cross wind. Unfortunately, due to the fairly trapezoidal cross-section, if there is any cross wind, a low pressure region develops on the leeward side of the locomotive, as the top corner of the casing is too sharp for the flow to remain attached; on an A4 I would hazard a guess the detachment occurs much lower down . If the exhaust is too weak to get out of the low pressure region on the top of the casing (which during the transient exhaust cycle 6 times per revolution of the wheels it is), it then gets pulled into that low pressure region. The deflectors do help a lot, but there will always be a condition with the air-smoothed casing where you can get obscuration. On P2 2001 with it's Lentz valve gear the exhaust was sharp and it worked well, on 2002 with Walschaerts the exhaust was softer and didn't get clear, hence the second set of deflectors. Our members will be getting more details of this in the next issue of The Packet, which will be published soon...

    jnc likes this.
  12. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    We looked at some of these things in CFD (virtual wind tunnel); the problem with changing the contour of the smoke deflector is if it's not parallel to the railway track, it could obscure the drivers view. I believe the original design, and the 2nd batch design were tested in a wind tunnel at Southampton University in the 1940s (Bulleid acknowledges the work done there in his 1945 paper) but the details of that testing weren't published as far as I know. Again, our members will be getting more details of this in the next issue of The Packet, which will be published soon...

  13. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    I'd be interested in seeing that!

  14. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    The intention is the 2nd batch casing design, with deflectors

    Spinner likes this.
  15. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    The plan is to go mainline and have deflectors, as GSN had when built in 1944. The deflectors are necessary for mainline running. The draughting is primarily about improving the performance/efficiency of the locomotive, but with an eye on exhaust clearance at the same time.

    Sheff likes this.
  16. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    There's a few papers on the subject, correct. One on smoke deflectors on Maunsell locomotives, one on the development of the A4 & Duchess front-ends...

  17. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    We're definitely targetting mainline running; the time, effort and expense we're putting into recreate the original drawings, the cost of the new components, etc. is essentially the same whether we mainline certify or not, but we have a collective vision of recreating something like this (though probably with the latter cab). Having GSN purely on a heritage line at 25mph is like taking your Ferrari to Tesco to do the shopping, it doesn't use the power of the machine (we will visit Heritage lines of course, if they'll have us)

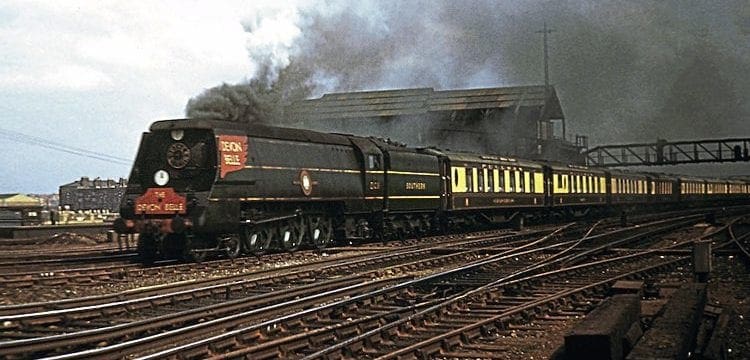

    [​IMG]

    Last edited: Apr 12, 2021
  18. class8mikado

    class8mikado Well-Known Member

    Joined:
    Jun 1, 2009
    Messages:
    3,125
    Likes Received:
    1,118
    Occupation:
    Print Estimator/ Repository of Useless Informatio.
    Location:
    Bingley W.Yorks.
    Heritage Railway Volunteer:
    No I do not currently volunteer
    Vision Shared. i think a membership is required...

    srapley likes this.
  19. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    I'll have to have another read of this book. The issue which the wind tunnel testing didn't solve (possibly didn't address) is cross-wind effects, which is where the exhaust obscuration really comes from. The deflectors combatted that to some extent, but no design can be perfected for all conditions (apologies to all if my posts are drawing this thread away from draughting from a perfomance point of view)

  20. srapley

    srapley New Member

    Joined:
    Jul 27, 2008
    Messages:
    39
    Likes Received:
    46
    Occupation:
    Aerodynamicist (by day)/CME 35011 (spare time)
    Location:
    Burton-on-Trent
    Heritage Railway Volunteer:
    Yes I am an active volunteer
    Have a look at our website, it is very, very easy to sign up for membership, thanks to our excellent Membership Secretary https://35011gsn.co.uk/membership.html

    Allegheny likes this.
